DESK AVAILABILITY AT A GLANCE

Employees never have to guess which desk is free, occupied, or in between. The 8” screen clearly indicates desk status at a glance.

BOOK SHARED DESKS WITH EASE

Tap to book and claim the desk directly at the desk, whether pre-booked or adhoc.

MANAGE SPACES AND DEVICES WITH EASE

Ensure that desks are fully operational at all times from any location, using Logitech Sync.

LOGITECH DESK BOOKING

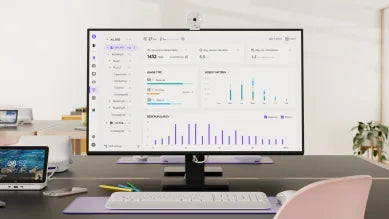

Enable employees to easily find and reserve desks, choose desks near coworkers, and notify colleagues when they’re coming to the office.

MICROSOFT TEAMS

Reserve a shared desk in advance through Teams, Outlook, or right from Logi Dock Flex for adhoc bookings.*

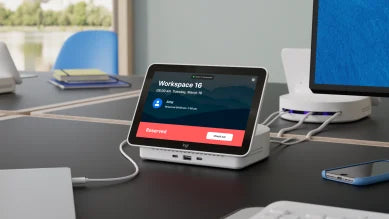

ZOOM WORKSPACE RESERVATION

Logi Dock Flex works as a scheduling display to allow for easy check-in and adhoc or advanced booking of the shared desk.*

A SECURE AND RELIABLE CONNECTION

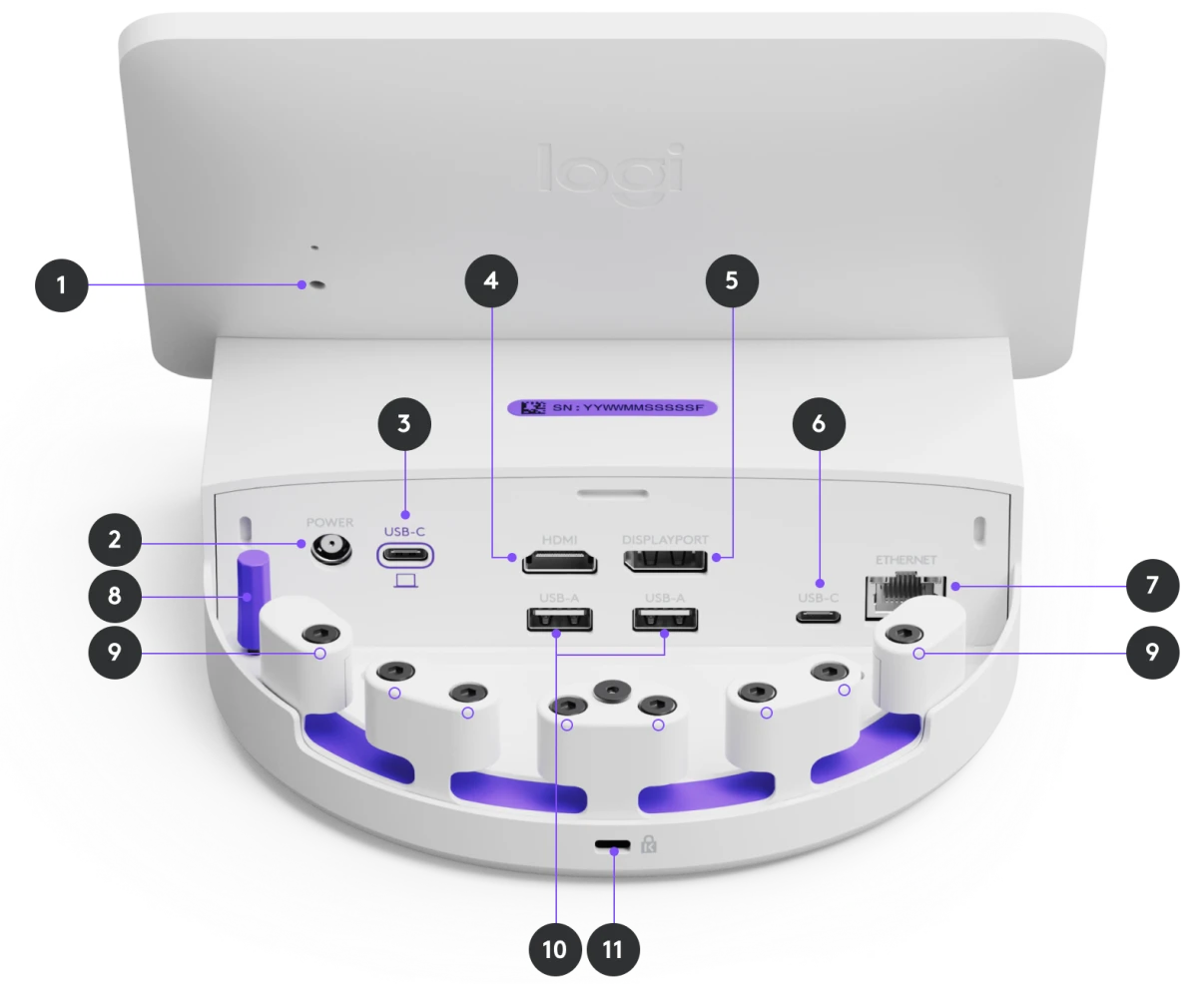

Attach up to two monitors with HDMI and DisplayPort. Attach peripherals with three IT-managed USB ports and Ethernet for security. There are also three front-facing USB ports for users.

• Power/Reset Button
• Power
• USB-C Upstream 100W
• HDMI
• DisplayPort
• USB-C (USB 3.1)
• Gigabit Ethernet
• Cable Retention Key
• Cable Retention
• USB-A (USB 3.1)
• Kensington Security Slot

Dimensions

Height: 5.56 in (141.2 mm)

Width: 7.91 in (201 mm)

Depth: 6.96 in (176.9 mm)

Weight: 2.2 lbs (1.0 kg)

Ports

Front (User-Facing)
• 2x USB-C (2x7.5w)

• 1x USB-A (7.5w)

Rear (IT-Managed)
• 1x USB-C (7.5w)

• 2x USB-A (2x7.5w)

• 1 x HDMI v. 2.0 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)

• 1 x DisplayPort 1.4 (Support up to 4K, i.e. 3840 x 2160 @60Hz HDR)

• 1x RJ45 Ethernet 10/100/1000

• DC Power Connection

• 1x USB-C laptop connection, up to 100 watt charging

Screen

Size: 8.00 in (203.2 mm) diagonal IPS (In-Plane Switching) LCD Panel with LED Backlighting

Resolution: 1280 x 800 resolution

Touch: Capacitive, 5 points multi-touch

Brightness: 300 nits

Contrast: 800:1

Anti Fingerprint: Oleophobic coating

Viewing angle: 85 degrees (U/D/L/R)

Position angle: 60 degrees

Appliance Ports and Interfaces

Ethernet: 10/100 Mbps (shared via internal two port Ethernet switch)

WiFi: 802.11a/b/g/n/ac Bluetooth 5.0 Ambient light sensor

Appliance Ports and Interfaces

Managed docking station

Advanced Cable Retention

Security Kensington Lock slot

Environmental

Operating Temperature: 0 to 40°C

Operating Humidity: 10 to 90%

Stored Temperature: -40 to 70°C

Stored Humidity: 0 to 95%

Security

Full Disk Encryption: AES-128

Data Encryption: Symmetric Keys, PKI

Device Identity: Protected by device attestation

Key Protection: Arm TrustZone, RPMP

Device Security: Kensington Lock

System Requirements

Windows 11, Windows 10

macOS two most recent versions

Available USB-C port*

AC Power

Latest version of Logitech CollabOS

*For USB-C functionality, laptops must support USB Power Delivery 2.0 (or greater) for power delivery of up to 100W, USB 3.1 Gen 2 (or greater) for data transfer and DisplayPort Alt mode for video output.

Package Contents

Managed docking station

Power supply + Regional AC cord

1.5m USB-C Cable + magnetic dock

Power Supply Bracket

Warranty Information

2-year limited hardware warranty
