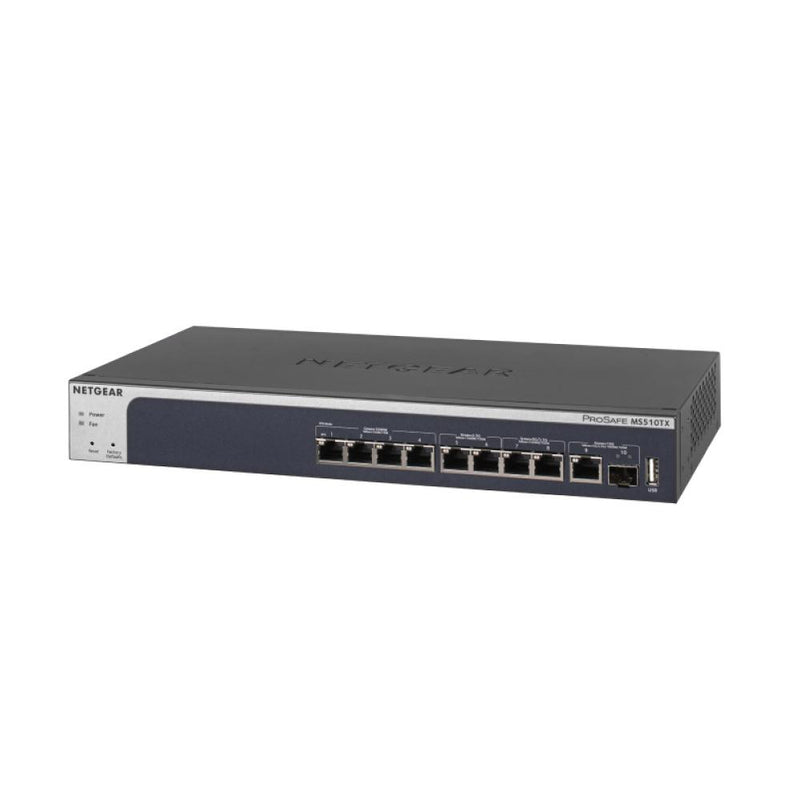

NETGEAR MS510TX 10-Port Multi-Gigabit/10G Smart Managed Pro Switch - with 1 x 10G SFP+

SKU: MS510TX-100AJS
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection
NETGEAR MS510TX 10-Port 10G Multi-Gigabit Smart Switch - Managed, with 8 x Multi-gig, 1 x 10G, and 1 x 10G SFP+ ports, Desktop or Rackmount, and Limited Lifetime Protection

NETGEAR MS510TX 10-Port Multi-Gigabit/10G Smart Managed Pro Switch - with 1 x 10G SFP+

SKU: MS510TX-100AJS
/
Frais d'expédition calculés lors du passage à la caisse.
  • Centre de services local
  • Options de livraison disponibles

Businesses need to be ready for future expansion: with incoming new multispeed devices, their wired network needs to expand its reach and scope to support speeds greater than 1 Gigabit. The IEEE 802.3bz standard paved the way for new 2.5 Gigabit and 5 Gigabit speeds in addition to legacy 1 Gigabit and 10 Gigabit per second. New servers, workstations, storage devices, and motherboards are coming with 802.3bz (NBASE-T) Multi-Gigabit Ethernet for 2.5X to 5X faster speeds up to 100 meters (323 feet) on legacy Cat5E / Cat6 cables.

Plus de 10-Gigabit Switching
NETGEAR 12 Empty Slot Modular Stackable Managed Switch with 8-port 10G and 2-port 40G expansion cards
NETGEAR 12 Empty Slot Modular Stackable Managed Switch with 8-port 10G and 2-port 40G expansion cards
NETGEAR XS724EM-100EUS 24-Port 10G/Multi-Gigabit Plus Switch with 2 Dedicated SFP+ Ports
NETGEAR XS724EM-100EUS 24-Port 10G/Multi-Gigabit Plus Switch with 2 Dedicated SFP+ Ports
NETGEAR XS724EM 24-Port 10G/Multi-Gigabit Plus Switch with 2 Dedicated SFP+ Ports
Épuisé
NETGEAR MS510TXM 8-Port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ Ports
NETGEAR 8-Port 10G Multi-Gigabit Ethernet Smart Switch (MS510TXM) - Managed, 8 x Multi-gig Ports, 2 x 10G SFP+, Optional Insight Cloud Management
Épuisé
Netgear 5-Port Gigabit Ethernet Plus PoE Pass-Throu/PoE Power Down Switch (GS105PE) with 2-Port PoE out Ports
Netgear 5-Port Gigabit Ethernet Plus PoE Pass-Throu/PoE Power Down Switch (GS105PE) with 2-Port PoE out Ports
NETGEAR 5-Port Gigabit Ethernet Plus PoE Pass-Throu/PoE Power Down Switch (GS105PE) with 2-Port PoE out Ports
NETGEAR XS508M 8-Port 10G Multi-Gigabit Ethernet Unmanaged Switch - with 1 x 10G SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection
NETGEAR XS508M 8-Port 10G Multi-Gigabit Ethernet Unmanaged Switch - with 1 x 10G SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection
NETGEAR XS508M 8-Port 10G Multi-Gigabit Ethernet Unmanaged Switch
NETGEAR XS505M 5-Port 10G Multi-Gigabit Ethernet Unmanaged Switch - with 1 x 10G SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection
NETGEAR XS505M 5-Port 10G Multi-Gigabit Ethernet Unmanaged Switch - with 1 x 10G SFP+, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection
NETGEAR XS505M 5-Port 10G Multi-Gigabit Ethernet Unmanaged Switch
Retour à 10-Gigabit Switching
SpecificationsProduct DatasheetInstallation Guide

Features

TRAFFIC MANAGEMENT

Auto Negotiation of speed and duplex modes
IEEE 802.3x Flow Control
Dynamic MAC address management
IEEE 802.1Q-based VLAN
Auto Voice VLAN
Auto Video VLAN (selected models)
VLAN routing (selected models)
QoS based on WRR, strict priority, or both
Port-based and IEEE 801.2p-based QoS
TCP/UDP-based QoS
DiffServ
IPv4 and IPv6-based QoS (selected models)
DSCP Support
Rate Limiting (ingress, or egress)
Link Aggregation and LACP

SWITCH MANAGEMENT

Web browser-based management GUI
Smart Control Center Software for multi-switch management
IP Access List
IPv6 Management
Configurable Management VLAN
SNMP v1/v2c and v3
Standard MIBs (RFC1213, RFC1643, and RFC1493)
RMON group 1, 2, 3, 9
Firmware Upgrade through Smart Control
Center (TFTP)
Firmware download (to switch) and upload (to server) through TFTP/HTTP
Configuration and Image Upload (to PC) through HTTP
Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)
Memory & FLASH log
Syslog (server)
System password protection

Whisper Quiet

Whisper Quiet

A maximum of 27.3dB (GS716TP) even at full power and 25oC (77oF) ambient.

Room to Move

Room to Move

5 different ports available: 1G, 2.5G, 5G, 10G; SFP+ and Copper

Secure Your Data

Secure Your Data

Defend with Access Control, DiffServ Qos policies, LACP Link Aggregation, Private VLANs, Denial of service protection

Specifications

Technical Specs

Gigabit ports : 4 (10M/100M/1G)

2.5-Gigabit ports : 2 (100M/1G/2.5G)

5-Gigabit ports : 2 (100M/1G/2.5G/5G)

10-Gigabit copper ports : 1 (100M/1G/2.5G/5G/10GBASE-T)

10-Gigabit fiber SFP+ ports : 1 (1G/10GBASE-X SFP+)

Switching fabric : 78 Gbps line rate

Number of PoE ports : N/A

PoE+ (802.3at) : N/A

Total PoE Power budget (Watts) : N/A

Max MAC entries : 16K

Buffer size : 3MB

VLAN (Number Supported) : 256

VLAN routing : Yes

Dynamic VLAN assignment : Yes

MLD Snooping : Yes

Static route : Yes (32 IPv4 + 32 IPv6)

Host ARP table : Yes (512)

EEE : Yes

DoS Prevention : Yes

Internal/External : Internal 100-240VAC 50-60Hz

Max consumption (Watts) : 26.1W

FAN : 1

Acoustic Noise Level @25C (dBA) : 21

Operating Temperature : 0° to 50° C

MTBF at 25° C : 1,078,683 hrs

Warranty

NETGEAR ProSAFE ® Limited Lifetime Hardware Warranty

Physical Specifications

Dimensions (WxDxH) : 440 x 204 x 43 mm (17.3 x 8 x 1.7 in)

Weight : 2.61 kg (5.76 lb)
