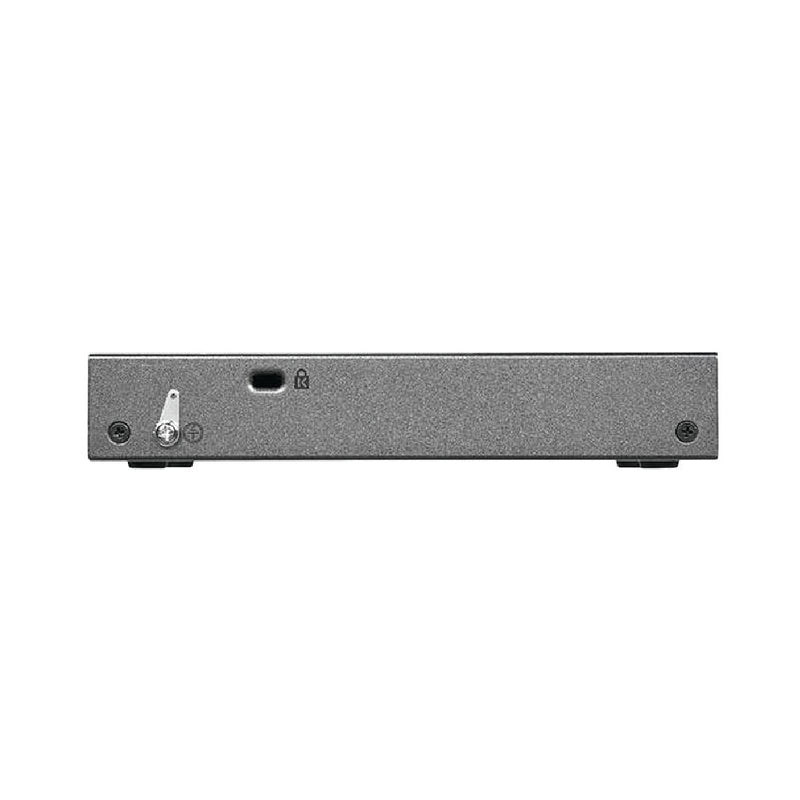

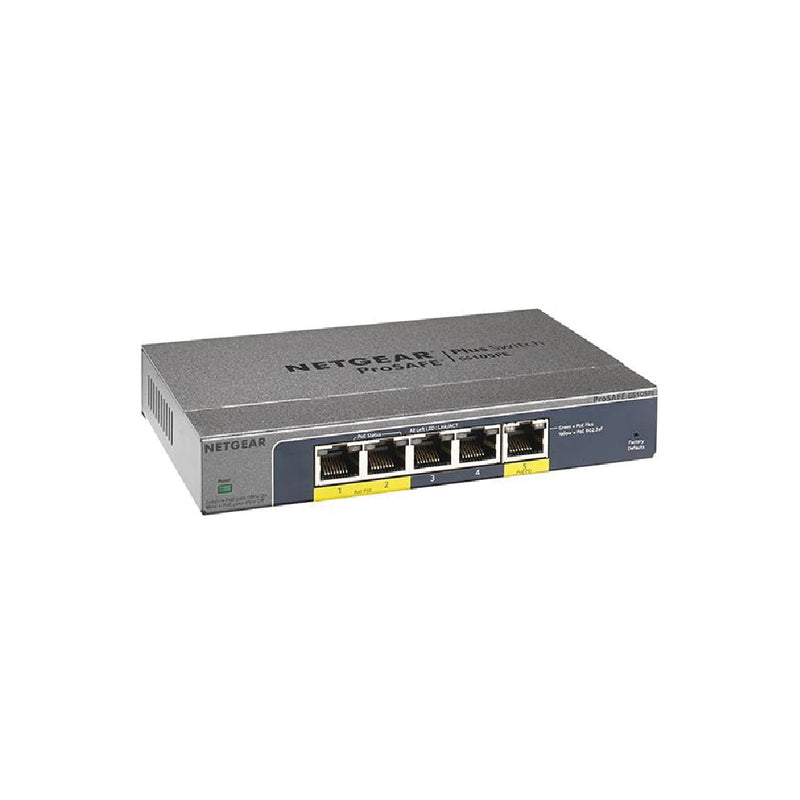

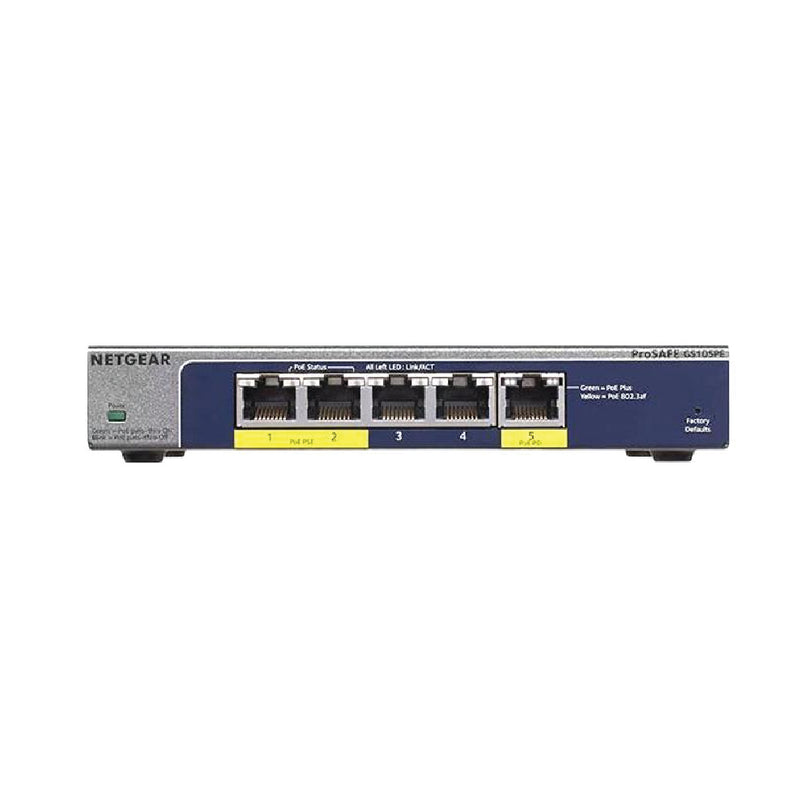

NETGEAR 5-Port Gigabit Ethernet Plus PoE Pass-Throu/PoE Power Down Switch (GS105PE) with 2-Port PoE out Ports
SKU: GS105PE-10000S
Features
Traffic Management
Auto Negotiation of speed and duplex modes
802.3x Flow Control
DHCP Client
Dynamic MAC address management
IEEE 802.1Q-based or port-based VLAN
QoS based on WRR, strict priority, or both
Port-based and IEEE 802.1p-based
QoS
QoS based on ToS (Type-of-Service)
DSCP Support (GS105E and GS105PE only)
Rate Limiting
Link Aggregation / Port Trunking (Static
LAGs on 16 ports and 24 ports, Static
LAGs and LACP on 48 ports)
Multicast Efficiency
Auto Negotiation of speed and duplex modes
802.3x Flow Control
DHCP Client
Dynamic MAC address management
IEEE 802.1Q-based or port-based VLAN
QoS based on WRR, strict priority, or both
Port-based and IEEE 802.1p-based
QoS
QoS based on ToS (Type-of-Service)
DSCP Support (GS105E and GS105PE only)
Rate Limiting
Link Aggregation / Port Trunking (Static
LAGs on 16 ports and 24 ports, Static
LAGs and LACP on 48 ports)
Reliability, Performance and Troubleshooting
Port mirroring both on ingress and egress traffic
Jumbo frame support
Broadcast Storm control
Cable diagnostics
Loop Detection
DoS Prevention
Energy Efficient Ethernet (IEEE 802.3az) compliant (Selected models)
Power savings with short cable detection and auto power-down when ports are in idle mode
Switch Management
Switch discovery on MAC or PC using the NETGEAR Switch Discovery Tool
Advanced configuration and management using web browser-based GUI
Manage or deploy multiple switches using ProSAFE Plus Utility (requires Windows PC)
Firmware upgrade thru ProSAFE Plus Utility (TFTP) or web browser-based GUI
Configuration upload (to Server)
System password protection
Multi-language support (varies by model, see datasheet for specifics)
Specifications
Product Number
GS105PE
Gigabit Ports
5
10 Gbps Port
n/a
Number of PoE ports
2
Total PoE Power budget (Watts)
PoE pass-thru: 19W with 802.3at / 7.9W with 802.3af input power
Max MAC entries
8K
Buffer size
2MB
VLAN (Number Supported)
- 64
Number of LAGs & number of members
n/a
Supported Mulitcast groups
128
Max number of source ports allowed (many to 1)
4
Internal/External
***NO EXTERNAL POWER ADAPTER: This product requires PoE input power (802.3af or 802.3at) to operate; it has no means to power from AC.
Max consumption (Watts)
22W
FAN
0
Acoustic Noise Level @25C (dBA)
0
Operating Temperature
0° to 50° C
MTBF
1.685.972
Electromagnetic Compliance (A or B)
B
Physical Specification
Weight (kg) : 0.45Kg
Dimensions (WxDxH) mm : 158x105x27
Warranty
Limited Lifetime
