Faster file transfer and uninterrupted connections

5 Gigabit Ethernet ports for faster file transfer and uninterrupted connections.

Combine two (2) gigabit Ethernet ports to further improve the aggregated file transfer speed.

1 Multi-Gig Ethernet port for 5G/2.5G/1G connectivity.

Stream in 4K UHD with 12 WiFi Streams

Increase your network capacity to handle today and tomorrow’s growing home network.

12 WiFi streams means more available WiFi bandwidth and less congestion for all the devices on the WiFi network

WPA3 Security Standard

State-of-the-art security is provided by the latest industry standardized system support for Wi-Fi CERTIFIED WPA3

Reliable WiFi connection and improved range

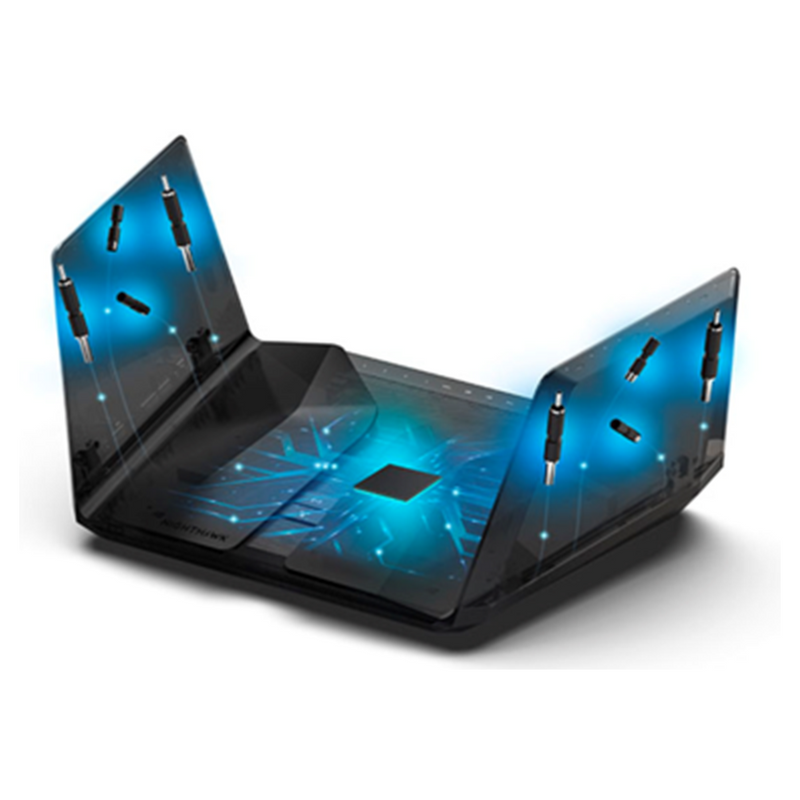

Eight (8) high-performance antennas extend wireless range coverage indoors and out.

Antennas come pre-optimized for best WiFi performance.

Introducing Wi-Fi 6 - The New Standard of WiFi

What is Wi-Fi 6 (also known as AX WiFi)?

The demand for data is increasing faster than the capability of current WiFi standards.

This standard of WiFi provides faster speeds and a substantial increase in network capacity, allowing more devices to connect to the network at the same time. Wi-Fi 6 is especially ideal if you have more than 20 devices connected on one network.

More Efficient WiFi for More Devices

When multiple users simultaneously stream video, download, play games, or run their smart home appliances, the network loses efficiency and performance suffers.

Wi-Fi 6 is built to handle more wireless capacity for your growing home network.

NETGEAR Nighthawk AX12 Wi-Fi 6 Router (RAX120)

Faster WiFi, Better Performance - 12-Stream WiFi with up to 1.2Gbps + 4.8Gbps for ultra-fast wireless speeds.

More WiFi for More Devices - Uplink and Downlink OFDMA allows efficient data transmission for more devices at the same time.

Up to 24 simultaneous WiFi clients

Maximized Range - Eight (8) high-performance antennas extend wireless range coverage indoors and out.

Works with Existing WiFi Devices - Supports all current WiFi devices and is backward compatible with older devices.

Specifications

WiFi Performance

AX6000 WiFi

WiFi Range

Very Large Homes

WiFi Band

Simultaneous dual-band 2.4 & 5GHz

Warranty Information

3-year Limited Hardware Warranty

Beamforming

Beamforming+ — boosts speed, reliability, and range of WiFi Connections for 2.4 and 5GHz

Physical Specifications

Dimensions: 12.2 x 7.48 x 1.77 in (310 x 190 x 45 mm)

Weight: 3 lbs (1364g)

Number of USB Ports

Two (2) USB 3.0 ports

Processor

AX Optimized powerful 64bit quad-core 2.2GHz processor

Security

Latest WiFi Protected Access® (WPA3)

Guest network access — separate & secure

VPN Support — Secure access to your home network away from home

The automatic firmware update delivers latest security patches to the router

Package Contents

Nighthawk AX12/12-stream AX6000 WiFi Router

Ethernet cable

Quick start guide

Power adapter

System Requirements

Microsoft® Windows 7, 8, 10, Vista®, XP®, 2000, Mac OS®, UNIX®, or Linux®

Microsoft® Internet Explorer® 11 or higher, Microsoft Edge

Google Chrome™ 55 or higher, Firefox® 45 or higher, Safari® 10 or higher

Number of Ethernet Ports

Five (5) 10/100/1000 Mbps Gigabit Ethernet ports

1 WAN & 4 LAN

Dual Gigabit Ethernet Port Aggregation

5G/2.5G/1G Multi-Gig Ethernet LAN port

WiFi Technology

802.11ax Dual Band WiFi (AX6000)

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1.2Gbps

5GHz AX: 8x8 (Tx/Rx) 1024 QAM 20/40/80/80+80MHz, up to 4.8Gbps

Backwards compatible with 802.11a/b/g/n/ac WiFi
