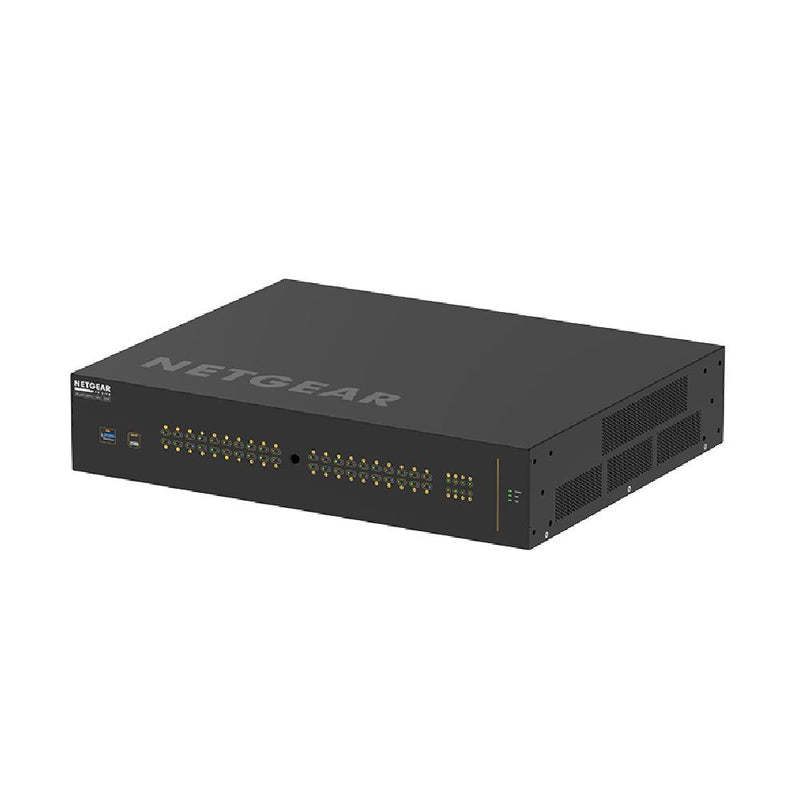

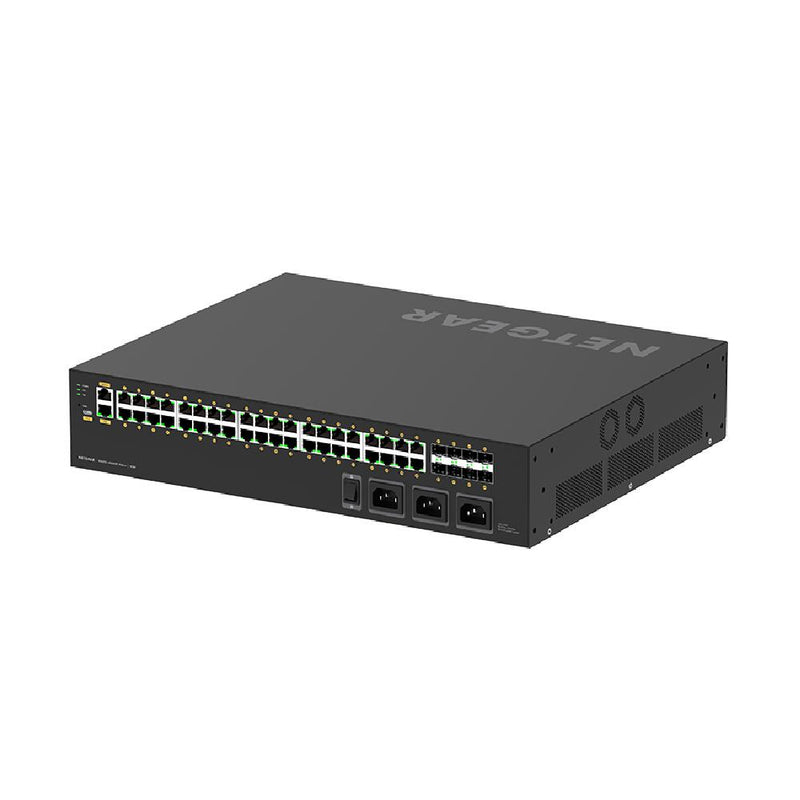

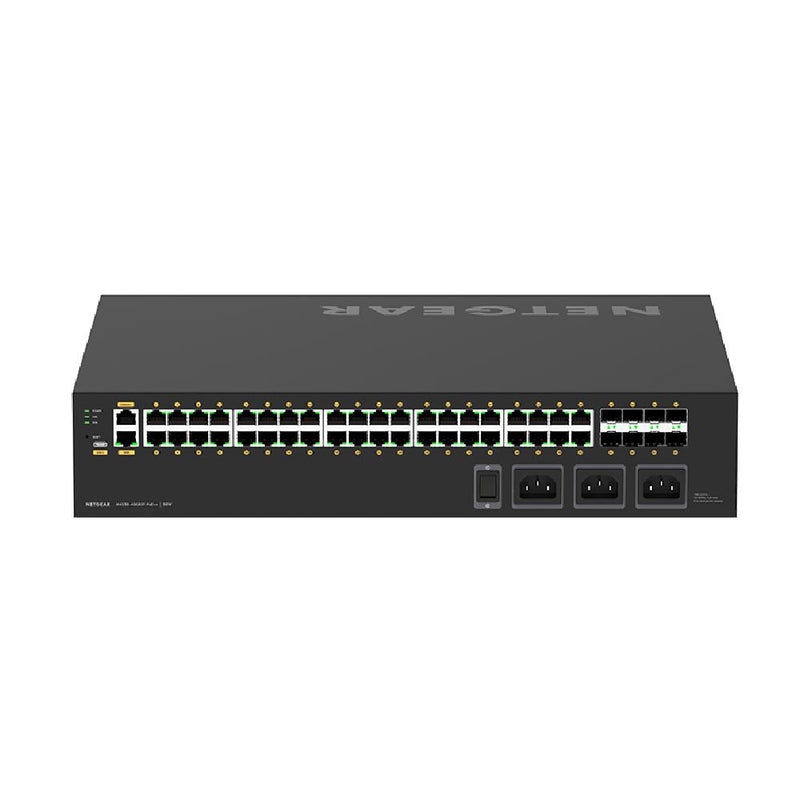

NETGEAR GSM4248UX 40x1G PoE++ 2,880W et 8xSFP+ Commutateur géré
SKU: GSM4248UX-100EUS
Features
Pre-configured for out-of-the-box use
NETGEAR IGMP Plus™ enables instant multicast functionality for most AV over IP installations
Dedicated AV web-based GUI interface
Unique interface designed for the AV professional with color-coded, port-based profiles
Profiles for common audio protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations. AVB Requires a separate license
Video profiles built-in
Special profiles for NVX, SVSI, Q-SYS and Dante video profiles can be easily assigned to ports as needed
Unique Automatic Configuration
Auto-trunk and auto-lag functionality automatically configures other M4250 switches for use in star topology
Easier configuration with new AV GUI
The AV-oriented, web-based GUI permits factory or user-specified profiles to be assigned to individual ports as needed.
Use in noise-sensitive environments
Adjustable fans can be turned off if certain conditions are met. Even the default Quiet mode is quieter than most other switches
Get up and running fast with little engineering time required
Our NETGEAR IGMP PlusTM feature is set from the factory to ensure out-of-the-box functionality for most AV over IP installations.
Multiple mounting options provide ultimate flexibility
Threaded mounting holes sized to industry standards are built into the chassis for mounting behind a display or clamped to a truss.
Specifications
Product Number
GSM4248UX-100EUS
Primary Port Speed
1 Gigabit
Number of Ports
48 (40x 1G PoE++, 8x SFP+)
PoE Ports / Budget
40 PoE++ (90W/port), 2,880W Budget
IGMP Support
Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support
Yes, up to 12kb
AVB Support
Yes. Electronic license required, activation key sent via email (AVB4248UX-10000S).
Acoustics
Fanless or 60dB@25ºC
Power Consumption
Single AC With PoE: 912W/3113.57Btu/hr
Dual AC With PoE: 1998W/6821.17Btu/hr
Tripple AC With PoE: 3523W/12027.52Btu/hr
Without PoE: 82.6W/282Btu/hr
Standby without any port connection: 68.5W/233.86Btu/hr
Physical Specifications
Dimensions (WxDxH) : 40 x 350 x 86.4 mm
Weight : 9.76Kg (21.51lb)
Product Contents
M4250-40G8XF-PoE++ (GSM4248UX)
Power cord(s)
Console USB Type-C and RJ45-DB9 cables
Rack-mounting standard brackets
Longer brackets for recessed mounting
Rubber footpads for tabletop installation
Installation guide
Warranty
Limted Lifetime Warranty
