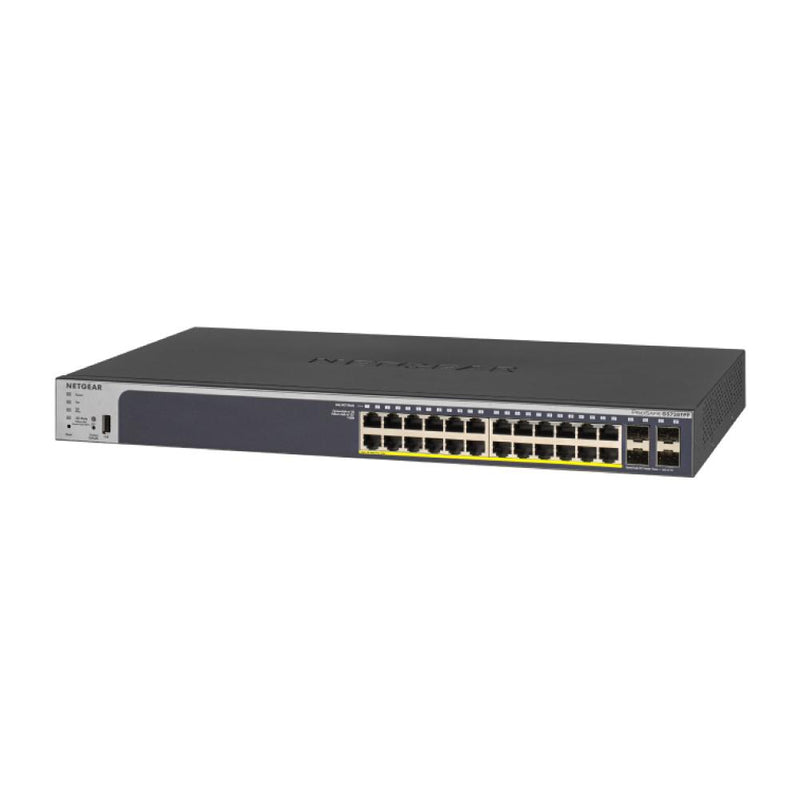

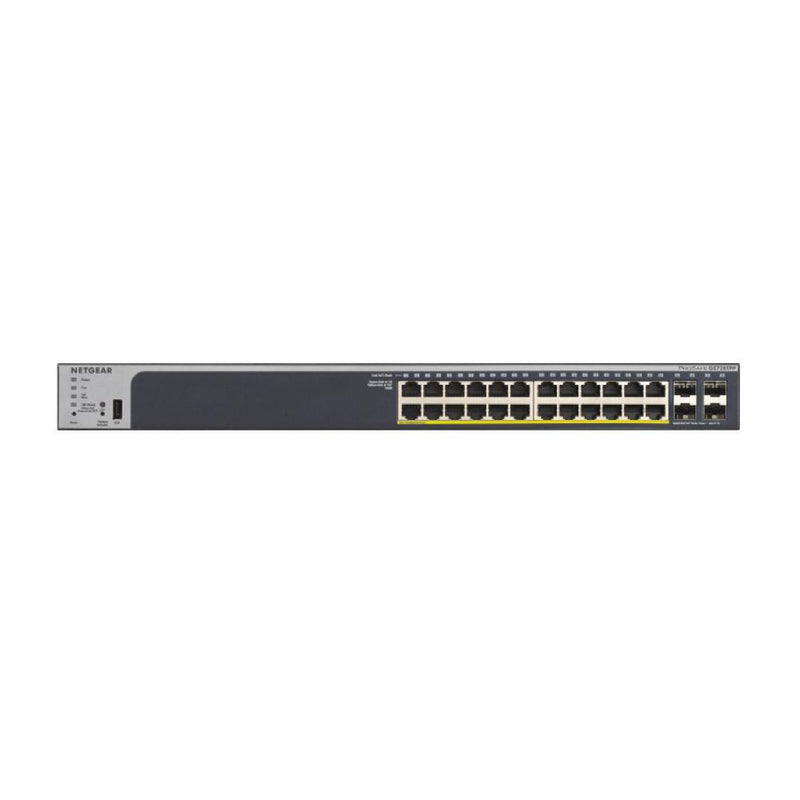

Name: NETGEAR GS728TPv2 28-Port Gigabit Ethernet Smart Managed Pro PoE Switch - with 24 x PoE+ @ 190W
Brand: Kaira Mauritius
SKU: GS728TP-200EUS
Availability: InStock

NETGEAR GS728TP 28-Port PoE Gigabit Ethernet Smart Switch - Managed, Optional Insight Cloud Management, 24 x PoE+ @ 190W, 4 x 1G SFP, Desktop or Rackmount, and Limited Lifetime Protection

Centre de services local
Options de livraison disponibles

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of PoE port counts and power budgets that can adapt to your business’ needs, whether in the hospitality, catering, education or retail domains.

The GS728TPv2, GS728TPPv2, GS752TPv2 and GS752TPP Gigabit Ethernet Switches with PoE+ and 4 SFP Ports join the NETGEAR Standalone Smart Switches family, adding full 24 and 48 port PoE+ support for deployment of modern high power PoE devices. Cautious spender organizations can now deploy denser PoE+ devices connected to a cost effective switch, with a reasonable PoE power budget of 190W over 24-port, or 380W over 48-port.

Organizations who buy infrastructure for the long term and want future proofing for the unforeseeable can now select a switch with a PoE power budget of 380W over 24-port, or 760W over 48-port providing more headroom. Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise: the GS728TPv2 supports quiet rack mounting operation with a maximum of 27.08dB even at full PoE power with traffic on all ports and 25°C (77°F) ambient.

Plus de PoE: Power over Ethernet

NETGEAR GS724TPv3 24-Port Gigabit Ethernet Smart Managed Pro PoE Switch - with 24 x PoE+ @ 190W

NETGEAR 8-Port Gigabit Ethernet Smart Switch with Cloud Management (GS108Tv3)

Épuisé

NETGEAR 5-Port Gigabit Ethernet Plus PoE Pass-Throu/PoE Power Down Switch (GS105PE) with 2-Port PoE out Ports

NETGEAR 16-Port Gigabit Ethernet Unmanaged PoE Switch (GS516UP) - with 8 x PoE+ and 8 x Ultra60 PoE++ @ 380W, Desktop or Rackmount

Netgear ProSafe™ GS728TPPv2 24 Port Gigabit Full PoE+ Smart Switch

24-Port Gigabit Ethernet PoE+ Smart Switch w/ optional Remote/Cloud Management and 4 SFP Ports (380W)

NETGEAR GS752TPP 52-Port Gigabit Ethernet Smart Managed Pro PoE Switch - with 48 x PoE+ @ 760W

Retour à PoE: Power over Ethernet

Specifications Data Sheet Installation Guide User Manual

Screenshot 2024-08-05 135027.png__PID:ea01fa27-b8f8-484b-b441-9495b95d9419

Screenshot 2024-08-05 135059.png__PID:01fa27b8-f818-4b34-8194-95b95d9419bc

Screenshot 2024-08-05 135111.png__PID:fa27b8f8-184b-4441-9495-b95d9419bcab

Screenshot 2024-08-05 135125.png__PID:27b8f818-4b34-4194-95b9-5d9419bcaba8

Features

Traffic Management

Auto Negotiation of speed and duplex modes

IEEE 802.3x Flow Control

Dynamic MAC address management

IEEE 802.1Q-based VLAN

Auto Voice VLAN

Auto Video VLAN (selected models)

VLAN routing (selected models) QoS based on WRR, strict priority, or both

Port-based and IEEE 801.2p-based QoS

TCP/UDP-based QoS

DiffServ

IPv4 and IPv6-based QoS (selected models)

DSCP Support

Rate Limiting (ingress, or egress)

Link Aggregation and LACP

Switch Management

Insight mobile app or Insight Cloud Portal

Web browser-based management GUI

Smart Control Center Software for multi-switch management

IP Access List

IPv6 Management

Configurable Management VLAN

SNMP v1/v2c and v3

Standard MIBs (RFC1213, RFC1643, and RFC1493)

RMON group 1, 2, 3, 9

Firmware Upgrade through Smart Control Center (TFTP)

Firmware download (to switch) and upload (to server) through TFTP/HTTP

Configuration and Image Upload (to PC) through HTTP

Configuration Download (to Switch) thru TFTP/HTTP and upload (to server)

Memory & FLASH log

Syslog (server)

System password protection

Switches with Essential L2/L2+ Features for SMB Networks

Powerful L2 and L2+/Layer 3 Lite features, great PoE functionality, and enhanced performance and usability optimized for network efficiency, operational cost savings, and ease of management. These switches are the ideal solution even for the most advanced small and medium organizations looking for the best combination of features, performance, and value.

Smart IT, not Big IT

Easy to manage via web browser-based management GUI or Smart Control Center for multi-switch deployment

Designed for Converged Networks, Big or Small

PoE and PoE+ Support available for all configurations, auto-Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance systems

Build a Future-Proof Network with NETGEAR

Future-proof with features like: VLANs, Access Control List, L3 Lite static routing, Multicast Groups, IPv6, QoS, Energy Efficient Ethernet (IEEE 802.3az)

Specifications

Product Number

GS728TP-200EUS

Model Description

24-Port Gigabit PoE+ Smart Managed Pro Switch with 4 SFP Ports (GS728TPv2)

10/100Mbps ports

N/A

Gigabit ports

SFP ports

Number of PoE ports

PoE+ (802.3at)

Total PoE Power budget (Watts)

190W

Max MAC entries

16K

Buffer size

1.5MB

VLAN (Number Supported)

256

VLAN routing

Yes

Dynamic VLAN assignment

Yes

MLD Snooping

N/A

Static route

Host ARP table

512

EEE

Yes

DoS Prevention

Yes

Internal/External

Internal 100-240VAC 50-60Hz

Max consumption (Watts)

226W

FAN

Acoustic Noise Level @25C (dBA)

27.08

Operating Temperature

0° to 50° C

MTBF

1,250,365 hours

Management

Insight Remote/Cloud Manageable with 1-Year Insight subscription included

Physical Specifications

Weight (kg) : 3.78kg

Dimensions (WxDxH) mm : 440 x 257 x 43.2 mm

Warranty

Limited Lifetime Warranty
