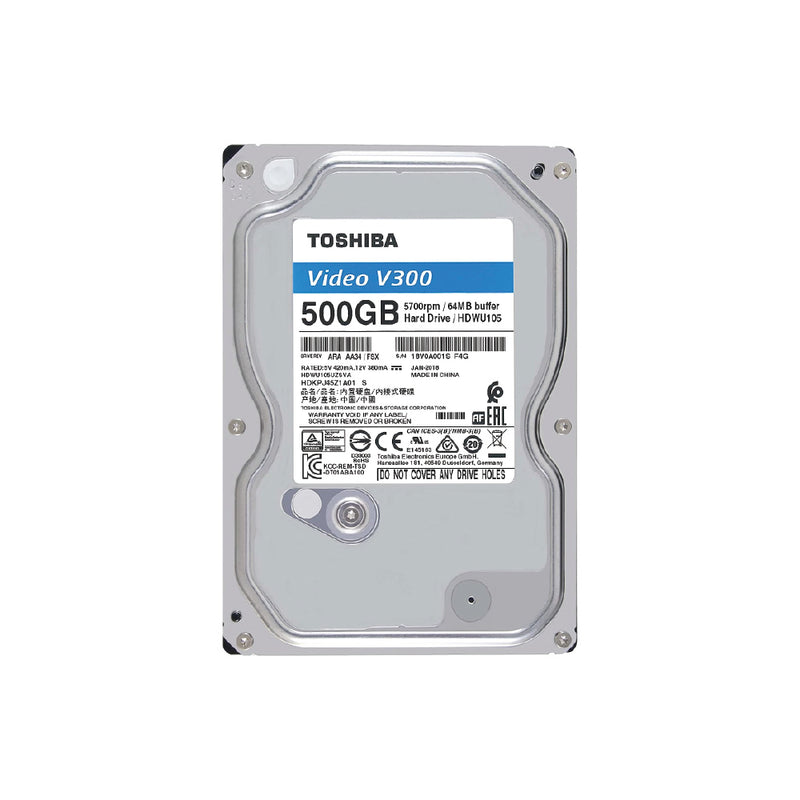

V300 Video Streaming Hard Drive
Stream. Record. Edit.
Toshiba’s 3.5-inch V300 Video Streaming Hard Drive with up to 3 TB lets you stream, record, edit and play video content on DVR, TV or NVR – with all the efficiency and reliability you need. A 64 MB buffer helps deliver smooth performance, while temperature control technology limits heat buildup, extending service life for added reliability. A drive that’s quiet and more efficient than ever, thanks to Toshiba’s Silent Seek Technology, and reduced energy consumption.
Use for:
• Video Editing Systems
• Set-Top-Box (STB)
• Digital Video Recorders (DVR)
• Network Video Recorders (NVR)
• Video Surveillance Systems
3.5" SATA Hard Drive
64MB Buffer
24/7 Operation
Up tp 16 cameras
Toshiba Silent Sleek Technology
Temperature Control
CAPACITY AT YOUR SERVICE
The V300 is available in a range of storage capacities to meet your specific requirements, with up to 3 TB. This series of 3.5-inch internal HDDs all come with a 64 MB internal data buffer, to ensure your video experience never slows down. And with an industry-standard SATA interface providing up to 6 GBit/s transfer, the action never stops!
Available in 1TB, 2TB, 3TB
Colour: Grey
V300
Video Streaming Hard Drive
OPTIMISED FOR THE VIEWER'S EXPERIENCE
The speed and performance of the V300 is delivered with a whisper, thanks to Toshiba's Silent Seek Technology to minimize noise and heat during operation. The low acoustics of the hard drive are optimized for the simlutaneous recording and streaming offered by today's DVRs and STBs. With quality like this, nothing gets in the way of a great viewing and listening experience.
KEEPING COOL WHEN THE ACTION HEATS UP
The efficient low spin design of the V300 helps to lower the energy consumption for video recording, editing and streaming features by up to 25% (compared to the P300, 7200 rpm model). With an extended temperature range, the hard drive is optimized for today's standard video recorders and set-top boxes, even when placed in high-temperature environments.
Product Specifications
Basic Specifications | - |
---|---|
Form factor | 3.5-inch |
Interface | 6.0 Gbit/s |
Number of cameras supported | 16 |
Drive bays supported | up to 8 |
Advanced Format (AF) | Yes |
RoHS compatible | Yes |
Halogen Free | Yes |
Shock Sensor | Yes |
Performance | - |
---|---|
Rotational speed | 5940 rpm (3 TB),
5700 rpm (1 TB - 2 TB) |
Buffer size | 64 MB |
Native Command Queing (NCQ) | supported |
Reliability | - |
---|---|
Workloads | 72TB/year |
Unrecoverable error rate | 1 per 10E14 bits read |
24/7 operation | Yes |
Load / Unload Cycle | 300,000 |
Power Management | - |
---|---|
Supply voltage | 5VDC (±5%) / 12VDC (±10%) |
Consumption (operating) | 5.40 W typ. (3 TB), 4.70 W typ. (2 TB), 5.70 W typ. (1 TB) |
Consumption - Active Idle | 4.20 W typ. (3 TB), 3.30 W typ. (2 TB), 3.00 W typ. (1 TB) |
Environmental | - |
---|---|
Temperature (operating / non-operating) | 0 to 65° C / -40 to 70°C |
Vibration (operating) | 0.67 G (5 to 500 Hz) |
Vibration (non-operating) | 1.04 G (2 to 200Hz) |
Shock (operating) | 70 G / 2 ms duration |
Shock (non-operating) | 300 G / 2 ms half sine |
Acoustics (idle mode) | 24 dB typ. (3 TB), 22 dB typ. (2 TB), 19 dB typ. (1 TB) |
Physical | - |
---|---|
Dimensions | 147 (L) x 101.85 (W) x 26.1 (H) mm |
Weight (approx.) | 700 g max. (2 TB, 3 TB), 450 g max. (1 TB) |
Box Content | - |
---|---|
Box Content | 3.5-inch internal HDD - V300 Video Streaming Hard Drive |
