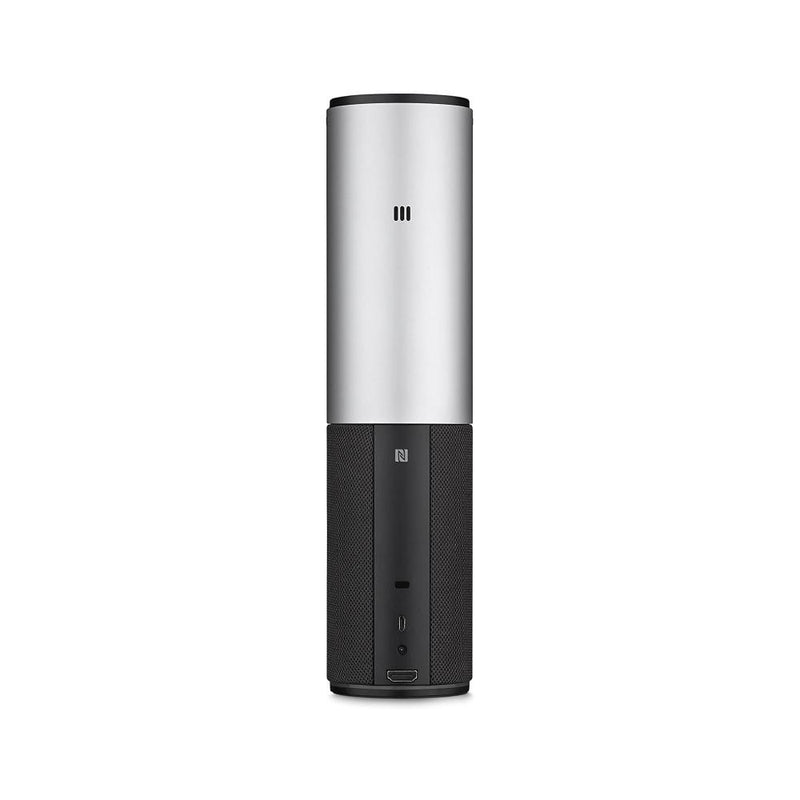

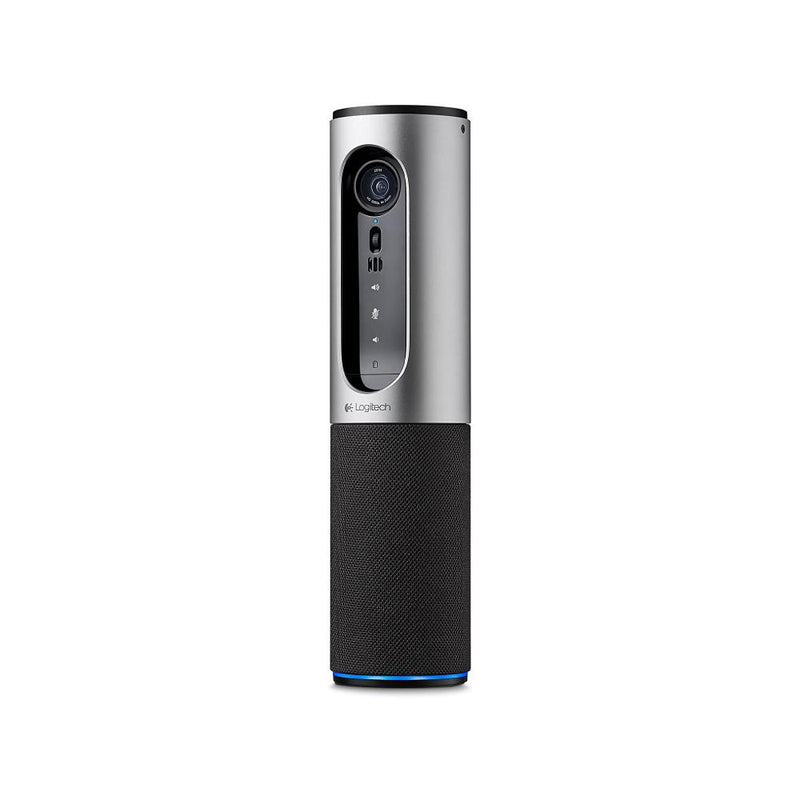

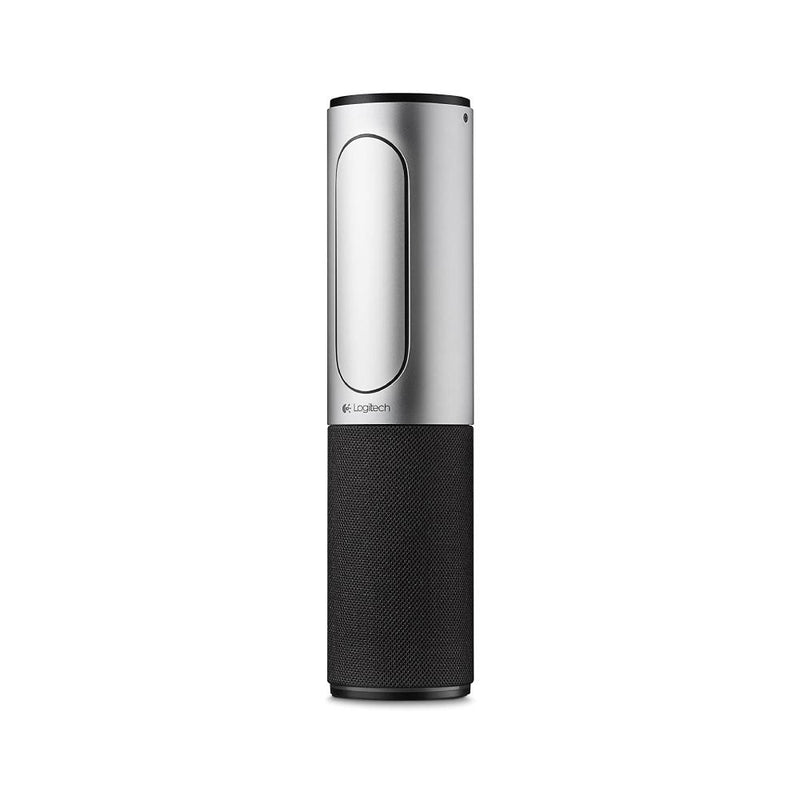

LOGITECH ConferenceCam Connect - Huddle Rooms & Home Office
SKU: 960-001034
FLEXIBLE VIDEO FOR THE
ANYWHERE WORKPLACE
Simplify video conferencing so anyone can set it up and run a meeting anywhere.
Make it affordable so you can outfit every conference room with video. Designed
for huddle rooms and home offices, Logitech Connect is also compact and
mobile so you can take it throughout the workplace and around the world.
Connect is always ready for your next video conference call.
KEY FEATURES
PERFECT FOR SMALL
SPACES
Logitech Connect goes beyond its award winning design — video conferencing so simple to use that anyone can set it up and so affordable you can enable every meeting room with video. Designed for tabletop placement and small spaces, this video conference solution offers a generous 90° diagonal field-of-view with pan and tilt, 4x zoom, and razor-sharp optics making it easy to see everyone in the room.
RECOMMENDED ROOM LAYOUTS >COMFORTABLE AND LONG-LASTING
Business people on the phone for hours will enjoy the comfort of this headset. Stylish, lightweight design and durable materials mean you can wear the H570e all day. Leatherette ear pads, plus padded headband with metal reinforcement provides strength and flexibility, with a fit that feels just right.
CUSTOMER STORY: CONNECT
COMPATIBLE WITH MOST VC APPS
Connect offers a plug-and-play USB connection to Windows® and Mac computers and Chromebooks™, and is certified for Skype™ for Business, Cisco Jabber™ compatible, and offers enhanced integration with BlueJeans, Broadsoft, LifeSize Cloud, Vidyo, and Zoom®.
PREMIUM CAMERA LENS
Connect features a premium glass lens for maximum
clarity. Enjoy bright, clear video with accurate color
rendition and sharpness, even when zoomed in.
Easily protect the lens from dust and scratches by
docking the magnetic remote control.
ADDITIONAL FEATURES
EASY AUDIO CONFERENCING
Dialing into an audio conference? Already connected on your smartphone? Simply pair Connect via either Bluetooth or NFC to enjoy outstanding audio clarity, volume, and dynamic range. Connect features two omnidirectional microphones and 360° wideband audio so everyone can hear and be heard.
PORTABLE POWER
Designed for convenient portability, Connect boasts an internal, rechargeable battery that can run video calls for up to 3 hours, and audio calls for up to 15 hours. Or, power Connect with the included AC power supply: swappable regional plugs (included) make it easy to to power and charge around the world.
USB PLUG-AND-PLAY CONNECTIVITY
With no special software, training, or maintenance required, launching an enterprise-quality videoconference has never been easier. Simply plug Connect into your PC, Mac, or Chromebook: it works as both a webcam and an audio device with your video conferencing software.
SAFE AND SECURE
Connect’s remote control docks over the lens, providing an extra level of privacy. And when you want Connect to stay put, the Kensington security slot offers simple protection from theft.
Specs and Details
DIMENSIONS
Main unit
Height: 304.2 mm
Width: 75 mm
Depth: 75 mm
Weight: 766 g
Remote Control
Height: 128 mm
Width: 41 mm
Depth: 9 mm
Weight: 32 g
TECHNICAL SPECIFICATIONS
Camera
Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients H.264 UVC 1.5 with Scalable Video Coding (SVC) Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video
Field of View
Diagonal: 90°
Horizontal: 82.1°
Vertical: 52.2°
4X digital zoom
Rightlight™ 2 Technology for clarity in various lighting environments, even low light
Digital pan, tilt and zoom from remote control or optional downloadable app
Mechanical tilt wheel
Camera LED for active streaming indication
SPEAKERPHONE
Integrated full duplex speakerphone with echo and noise cancellation
360° wideband audio
Bluetooth and NFC enabled
LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
Controls for call answer/end, volume and mute
Microphones (TX)
Two omni-directional microphones supporting 3.6 m diameter range
Frequency response: 100Hz – 16KHz
Sensitivity: -34 dB +/-3dB
Distortion: <1% @ 1KHz at 65dB
Speakers (Rx)
Frequency response: 140Hz – 16KHz
Sensitivity: 89dBSPL +/-3 dB at 1W/0.5M
Max output: 91.5dBSPL at 0.5 m
Distortion: <5% from 200Hz
Remote Control
Docks on device and functions as a lens cover
IR 3 m range
CR2032 battery (included)
Cables / Power
AC Power adapter with regional plugs
USB cable 1.8 m
Integrated rechargeable battery
MOUNT
Designed for tabletop use
Kensington security slot
COMPATIBILITY AND CERTIFICATIONS
Plug-and-play USB connectivity
Certified for Skype for Business and ready for
Teams
Zoom Certified
Fuze Certified
Compatible with Google Meet
Cisco Jabber® and WebEx compatible
Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras
PACKAGE CONTENTS
Logitech Connect device
Remote control
1.8 meter USB cable
Power adapter with regional plugs
Documentation
WARRANTY INFORMATION
2-Year Limited Hardware Warranty
SYSTEM REQUIREMENTS
Windows 7,8.1 or 10
macOS X 10.10 or later
Application Compatibility
Certified for Skype for Business, and compatible with most leading services such as Zoom, BlueJeans, Google Hangouts Pro, Cisco, and more.
PART NUMBER
960-001034
