LOGITECH Rally Bar - Système de visioconférence

SKU: 960-001312
Logitech Rally Bar - All-In-One Video Conferencing System
Logitech Rally Bar - All-In-One Video Conferencing System
Logitech Rally Bar - All-In-One Video Conferencing System
Logitech Rally Bar - All-In-One Video Conferencing System
Logitech Rally Bar - All-In-One Video Conferencing System

LOGITECH Rally Bar - Système de visioconférence

SKU: 960-001312
Power Adapter
Prix régulier Rs 0.00
/
Frais d'expédition calculés lors du passage à la caisse.
  • Centre de services local
  • Options de livraison disponibles

Logitech Rally Bar établit une nouvelle norme pour les réunions vidéo dans les salles de taille moyenne, avec des options d'extension pour les groupes et les paramètres plus importants.

Il est remarquablement simple à utiliser, à gérer et à déployer à grande échelle, offrant une vidéo et un son de qualité cinéma dans un format tout-en-un élégant. Plug and play Rally Bar avec n'importe quel PC ou Mac, ou utilisez le calcul intégré pour exécuter des applications de visioconférence directement sur l'appareil.

La Rally Bar comprend un ensemble d'objectifs multi-éléments, de puissants haut-parleurs à faible distorsion et un système de micro avancé pour créer des expériences de réunion aussi belles qu'elles en ont l'air. Une caméra AI dédiée amplifie le cadrage automatique RightSight et fournit des informations sur l'utilisation de la pièce directement au tableau de bord Logitech Sync. Améliorez votre collaboration vidéo avec Rally Bar.

LOGITECH RoomMate
LOGITECH RoomMate
LOGITECH RoomMate
Rs 0.00
LOGITECH Tap Scheduler for Meeting Rooms
LOGITECH Tap Scheduler for Meeting Rooms
LOGITECH Tap Scheduler for Meeting Rooms
Rs 0.00
LOGITECH TAP IP
LOGITECH TAP IP
LOGITECH Tap IP
Rs 0.00
Logitech Rally Bar - All-In-One Video Conferencing System
Logitech Rally Bar - All-In-One Video Conferencing System
LOGITECH Rally Bar - Système de visioconférence
Rs 0.00
LOGITECH Rally  Video Conferencing Camera System
LOGITECH Rally  Video Conferencing Camera System
LOGITECH Rally - Système de caméra de vidéoconférence
Rs 0.00
LOGITECH Rally Plus Video Conferencing Camera System
LOGITECH Rally Plus Video Conferencing Camera System
LOGITECH Rally Plus - Système de caméra de vidéoconférence
Rs 0.00

KEY FEATURES

SIMPLE TO SET UP

USB Mode
Appliance Mode

USB Mode

Appliance Mode

Cable Management

Connect via USB to virtually any PC or Mac with no additional software needed.

Run supported video conferencing applications – such as Zoom Rooms, Microsoft Teams Rooms, and others – directly on the device with no computer or laptop required.

Ensure clean, confident installs with secure cable retention and minimal cabling.

Mounting Options

Take advantage of multiple mounting options to deploy Rally Bar quickly and easily across all your midsize rooms.

SIMPLE TO USE

Start your meeting with just one touch, seamlessly connecting Rally Bar to
your preconfigured room solution.

MICROSOFT
ZOOM
PEXIP
MICROSOFT
ZOOM
PEXIP
GOTO
RINGCENTRAL
GOTO
RINGCENTRAL

LOOKS BRILLIANT

Upgrade the meeting experience with cinema-quality video,
outstanding color, and exceptional optical accuracy.

STAYS FOCUSED

Using AI, human perception, and motorized PTZ, Rally Bar adapts to meeting dynamics and keeps the camera on the action.

SOUNDS AWESOME

Rally Bar’s advanced audio engineering delivers powerful, room-filling sound and makes sure every voice is clearly heard.

GREAT CONVERSATIONSSTART HERE

Sound Optimization

Auto-level loud and soft voices – while suppressing unwanted noise – with AI-based RightSound™ technology that improves over time.

Adaptive Beamforming

Focus on the active talker with high-precision beamforming mics.

Full Duplex

Hear and be heard at the same time with excellent full duplex.

EXPAND THE CONVERSATION

Easily accommodate larger groups and spaces, starting with a 4.6 m mic pickup range (varies by environment) and the option to extend up to three Rally mic pods.

EXPAND THE CONVERSATION
SUPER SMART

SUPER SMART

Keep the focus on meeting participants with AI Viewfinder, which uses scene awareness to optimize RightSight auto-framing and camera control.

AI-DRIVEN INSIGHTS

Track room usage data from the Logitech Sync Dashboard, captured by AI Viewfinder’s people count function.

SIMPLE TO MANAGE

Monitor and manage your meeting room devices from one single platform with Logitech Sync.
Plus, get business insights into how your rooms are being used.

Insights
Monitoring
Management

Insights

Monitoring

Management

DEVICE MANAGEMENT TECHNOLOGY PARTNERS

Our integration with partner solutions and dashboards means you can easily manage your
devices in other platforms.

MICROSOFT
ZOOM
UTELOGY
SYMPHONY
LENOVO

YOUR SUSTAINABILITY ALLY

Our commitment to creating a more sustainable world starts with our 1.5°C
Climate Pledge, 100% renewable electricity goal, and a portfolio of video
collaboration solutions that help reduce your carbon footprint.

YOUR SUSTAINABILITY ALLY
WELCOME TO THE FAMILY

WELCOME TO THE FAMILY

Explore Logitech’s beautifully simple, next generation of small, medium, and large room solutions that can be deployed in PC or appliance mode.

ADDITIONAL FEATURES

TV MOUNT FOR VIDEO BARS
WALL MOUNT FOR VIDEO BARS
RALLY MIC POD

TV MOUNT FOR VIDEO BARS

Secure Rally Bar above or below the TV or Monitor.

WALL MOUNT FOR VIDEO BARS

Neatly and confidently secure Rally Bar or Rally Bar Mini on the wall for minimal footprint.

RALLY MIC POD

Add up to 3 Rally Mic Pods to expand audio coverage and provide convenient access to mute controls.

RALLY MIC POD MOUNT
RALLY MIC POD HUB
RALLY MIC POD EXTENSION CABLE

RALLY MIC POD MOUNT

Hide cables and anchor mics on the table or ceiling for a clean, finished look.

RALLY MIC POD HUB

Customize microphone placement for your conference table configuration.

RALLY MIC POD EXTENSION CABLE

Easily connect Rally Mic Pods to Rally Bar with up to two 10m extension cables.

SPECIFICATIONS

DIMENSIONS

Height: 164 mm

Width: 910 mm

Depth: 130.5 mm

Lens Depth: 28.8 mm

Weight: 7.08 kg

TECHNICAL SPECIFICATIONS

Certifications & Compatibility

Certifications: Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications
Compatibility: Plug and play USB connectivity with virtually any video conferencing application
Appliance mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances.
Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.

GENERAL SPECIFICATIONS

Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management: Logitech Sync
Displays Supported: 2
Display Resolution: 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file

Camera

Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal Field of View: 90°
Horizontal Field of View: 82.1°
Vertical Field of View: 52.2° Total
Room Coverage (field of view + pan and tilt): 132.1° horizontal x 82.2° vertical

Speakers

Drivers: 2x 70 mm
Sensitivity: 92 dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Rated Power: 8W
THD: 1kHz <2% at 1W
Speaker Sampling Rate: 48 kHz
Impedance: 4 Ohms

Microphones

Frequency Response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone Data Rate Output: 48KHz
Pickup Range: 4.5 m
Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise Suppression: AI based de-noising algorithm
Add-on Mics: Supports up to 3 additional Rally Mic Pods for larger conference rooms

RightSense™ Technologies

RightLight™: Renders natural skin tones for each participant
RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo

Interfaces

HDMI Out: 2
HDMI In: 1
USB: 3x Type A, 1x Type C
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy

Power & Cables

Power Supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 127 mm x 51 mm x 30 mm
DC Cable: 1.5 m
AC Cable: 1 m
HDMI 1.4 Cable: 2 m
USB A to USB C 3.0 Cable: 2.2 m

Environmental

Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70 °C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting

Security

Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP

Accessories

Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity: Logitech Strong USB (10 m, 25 m, 45 m)
Touch Controller: Logitech Tap

PACKAGE CONTENTS

Rally Bar
Power supply
AC power cord
HDMI cable
USB cable

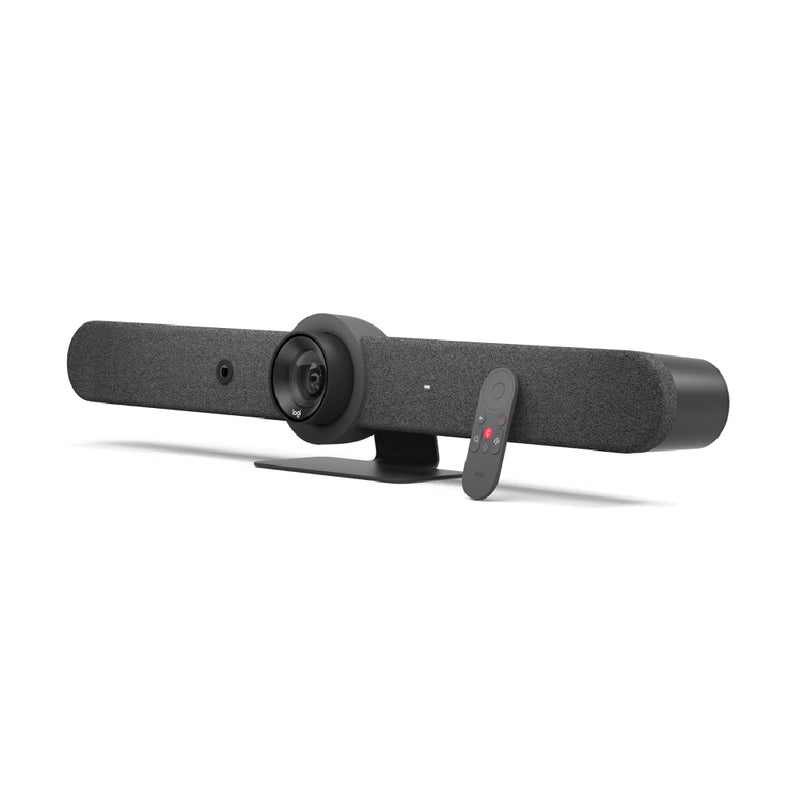

Remote control
Lens caps for main camera and AI Viewfinder
User documentation

WARRANTY INFORMATION

Standard: 2-year limited hardware warranty included.
Extended: Additional one-year extended warranty available at the time of hardware purchase.
Contact your reseller for availability.

PART NUMBER

960-001312
